Standard 222.01 — Specification for Marks, visual guide

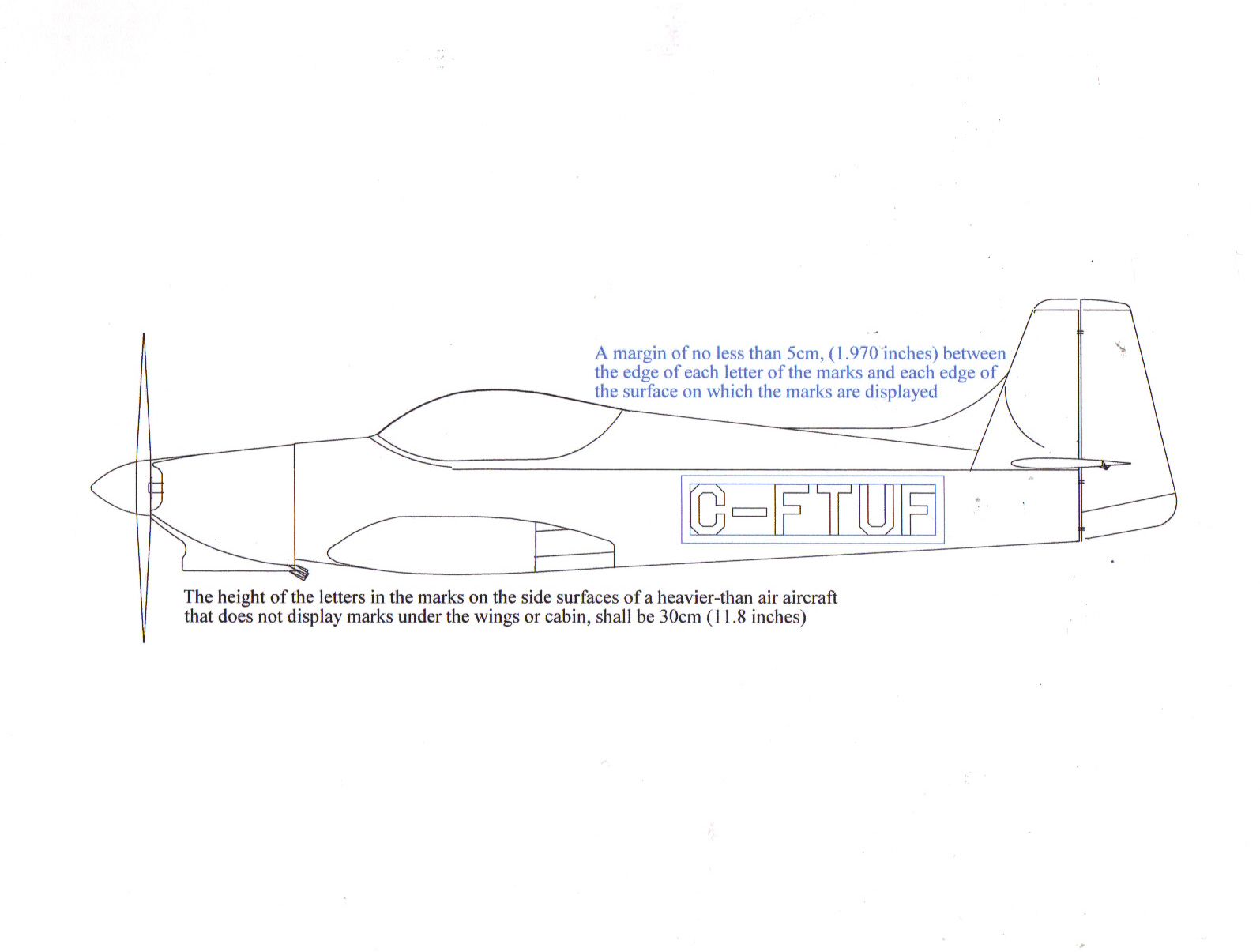

The height of the marks on the side surfaces of an aircraft that does not display marks under the wing

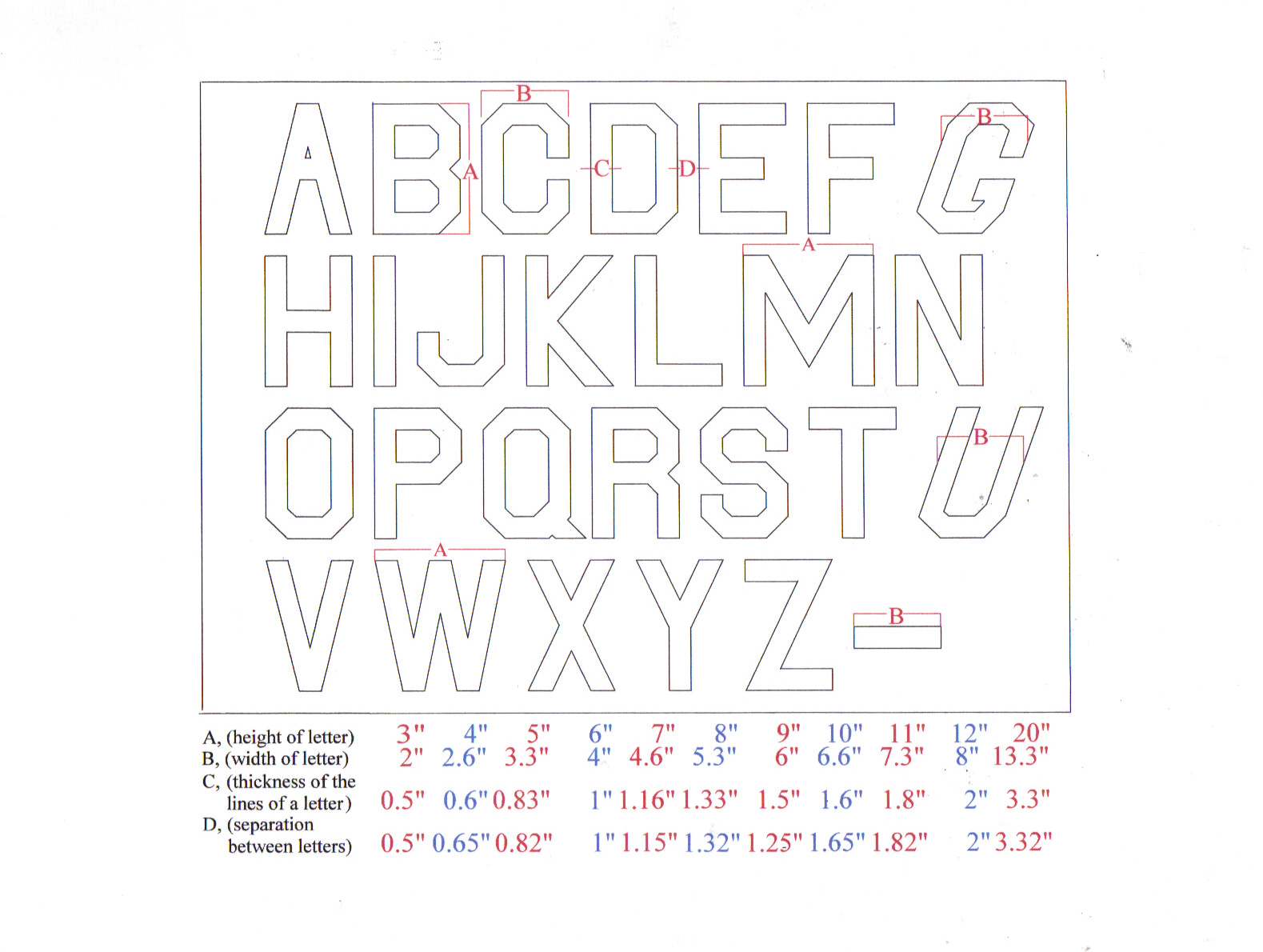

Roman capital type and dimension of marks

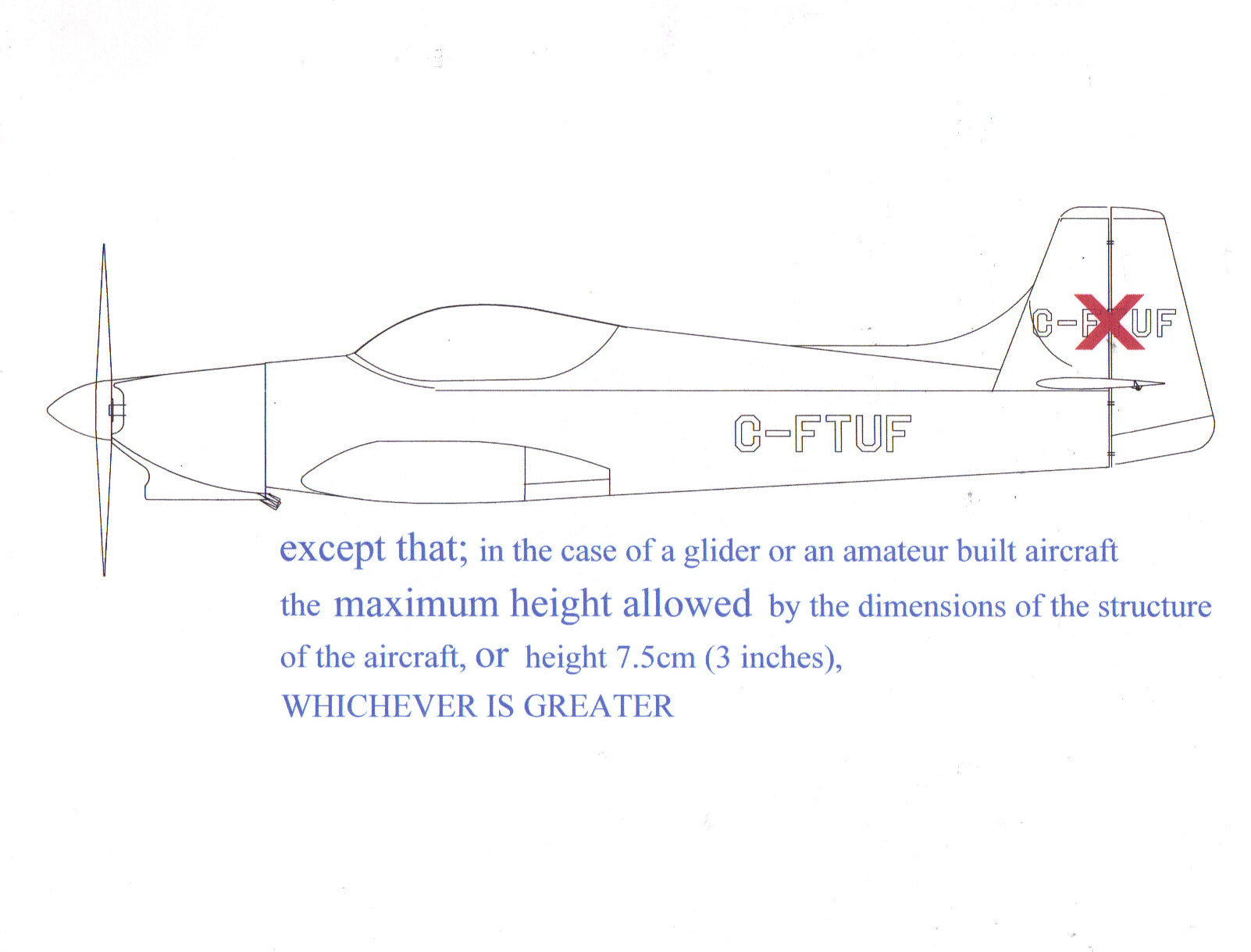

Full size marks shall be placed on the larger surface

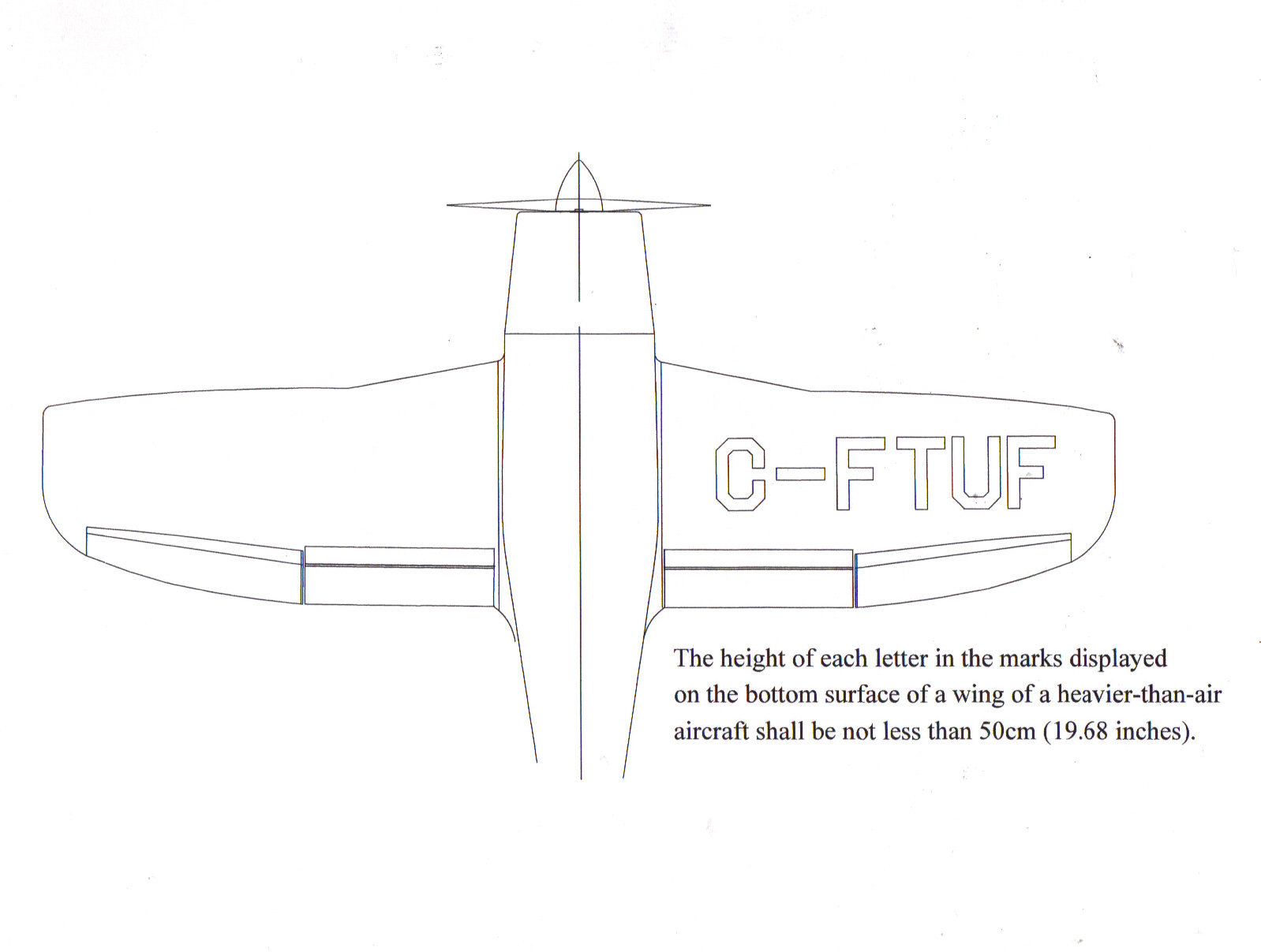

Marks under the wings

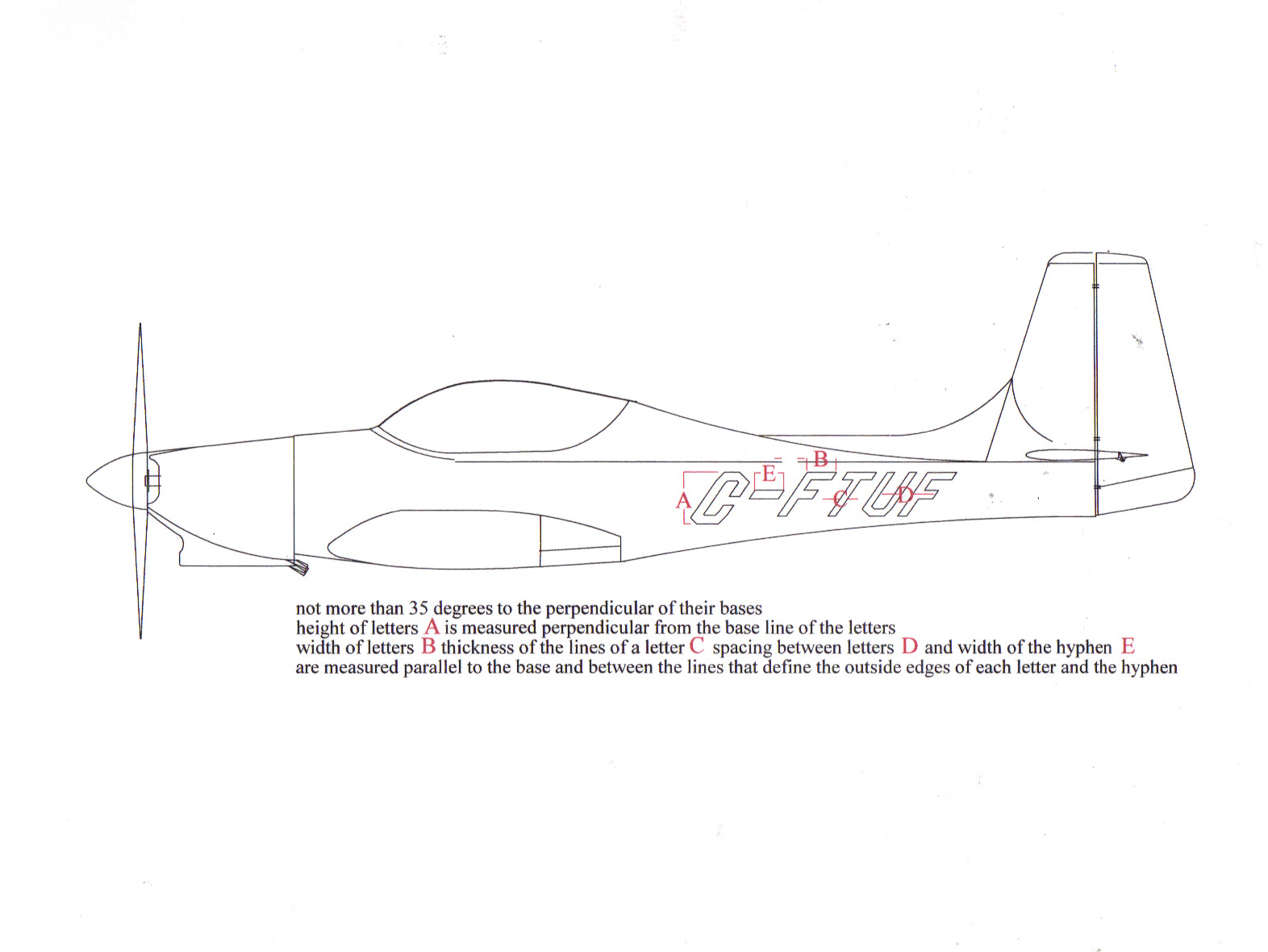

Marks Displayed at an Angle
